- Current rating 30Arms continuous
- Rated voltage of 250V (insulation)
- Glass-reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Dielectric strength of 4KVDC(peak)
- Bronze (CuSn6) contacts with 4µm Ag plating
- Polyamide (PA 6 30 % GR) black shell
- Temperature range from -30°C to 80°C
SPEAKON Socket Connector
- SPEAKON Socket Connector

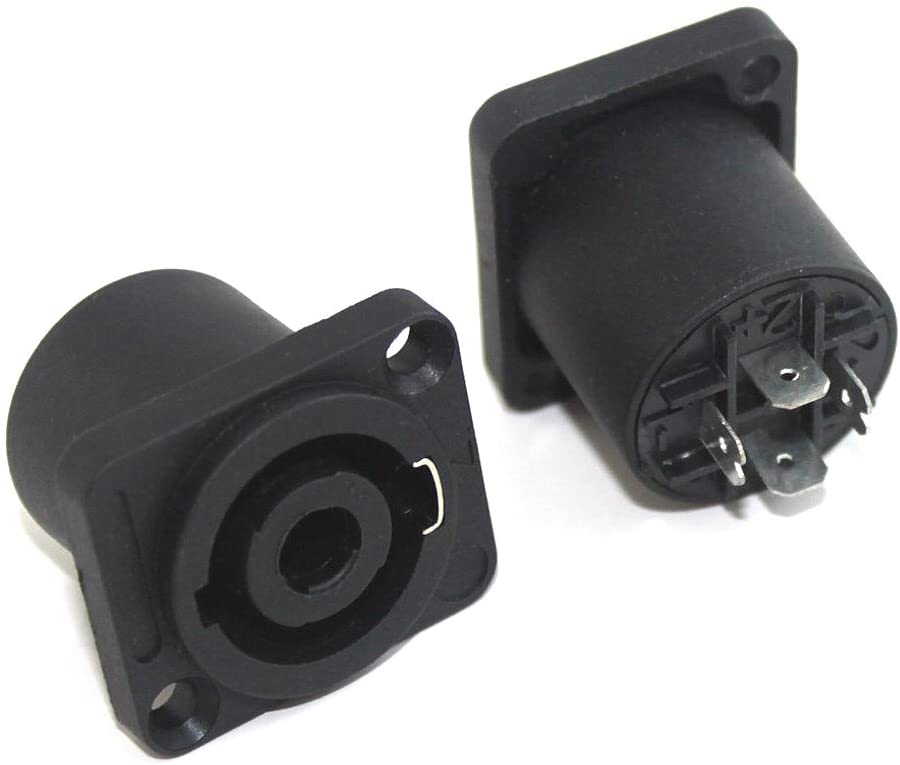

- 4 pole chassis speakON male connector. This connector is black in color, D-size flange, countersunk thru-hole, 3/16″ flat tabs. This is suitable with a panel mount standard chassis connector for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile, and easy to terminate. Airtight design is optimized for speaker applications.
20 in stock
There are no reviews yet.
